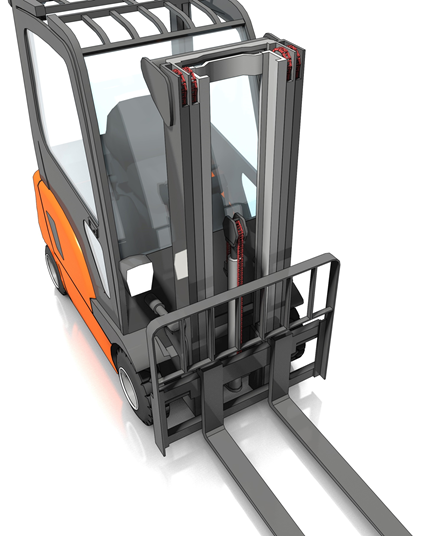

Lifting system

  • lift chains
  • inner mast
  • outer mast
  • lift cylinder
  • fork carriage
  • fork arms
  • tilt cylinder
2-part mast

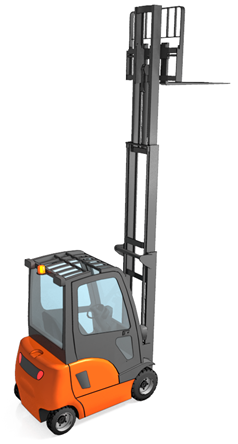

3-part mast
Full free lift
Without free lift

Lift chains

  • Hold, raise and lower the fork carriage.
  • If the lifting chains come off, the load drops straight down onto the surface.
  • Regular maintenance and inspection are very important.

Fork arms

  • Adapted to the truck’s lifting capacity distributed on both fork arms
  • The fork arms are subject to wear. If the original material thickness is worn 10% or more, the fork arm must be taken out of service.
